Solar Charging Station for EVs and PHEVs by Toyota

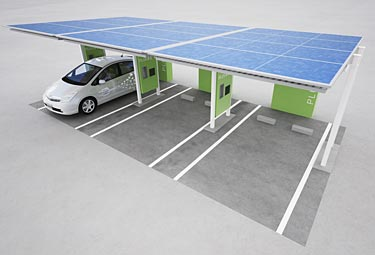

solar charging station toyota 300x204 Solar Charging Station for EVs and PHEVs by ToyotaBy April 2010, Toyota will put in place around 21 charging stations for plug-in hybrid vehicles(PHVs) and electric vehicles(EVs) in Aichi Prefecture . The most interesting thing about these stations is the fact that they are charging themselves using solar power.

The charging stations are connected to the power grid, but they can capture solar power as well through their 1.9KW solar panel , storing the energy in a 8.4kWh battery. The maximum output of the station using the grid is 202VAC/3.2kW, while using the solar panel-battery pack the output is 101VAC/1.5 kVA. The excess energy produced by the solar panel can be used for other facilities or sold to a utility company.

Earlier this year, Toyota announced an EVSE (electric vehicle supply equipment), which has a communication function with a maximum output of 200V/16A/3.2KW. Currently TIC (Toyota Industries Corp) is working on a smaller on-board charger with higher efficiency in order to meet the growing demand for PHVs and EVs. Prius, on one hand, seems to come with more and more devices that will help the development of PHVs and EVs, including generators, converters, inverters and air conditioning compressors.


You may also like to read about:




By Cristi
on December 29th, 2009 		Get E-mail Updates Subscribe by RSS

battery charger, charging station, electric car charging station, Electric Vehicles, EVs, PHVs, plug-in hybrid vehicles, solar battery charger, solar charging station, toyota, Toyota charging station

This entry was posted on December 29, 2009, 8:23 pm and is filed under Electric Vehicles. You can follow any responses to this entry through RSS 2.0. You can leave a response, or trackback from your own site.

  1. #1 by MalikTous on March 15, 2010 - 6:57 am

    Looks like Toyota executives visitted the Virginia Science Museum at our old Union Station facility. The museum runs a battery prototype car from a solar panel charger out in front of the museum. Guess it’s another case of catch-up…
